VAPOR DEPOSITION

Deposition technology that improves lamp perfection

Our company manufactures and supplies types of lamps focusing on hard coating technology that protects lenses of automobile front and rear fog lamps and turn signals from sandy dust generated when driving automobiles through injection molding and vacuum deposition that reflects lights.

DEPOSITION PROCESS

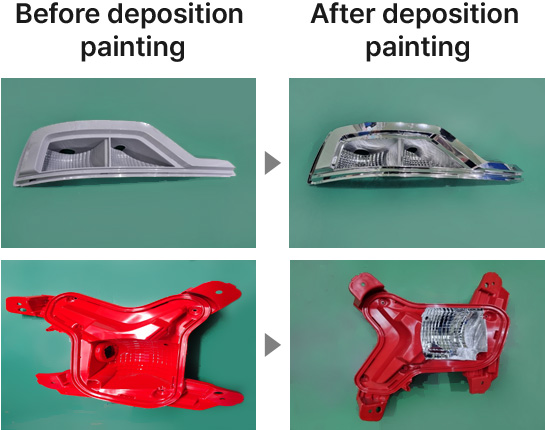

The equipment used to heat and deposit aluminum under vacuum, causing it to condense on the surface of the product and form a thin film, aims to achieve stable products and improve quality.

Deposition Facility Status

NO.   Equipments Specification
1 Manufacture Nuri Vacuum, Inter Teck,Dongwoo Vacuum
2 Chamber D 1600 X H 1800
3 Type Vertical(Dual front door)
4 Jig 8 Axis rotation
5 Axis rotation dia 420mm
6 Max. vacuum 2 X 10-6 torr
7 Plasma source 4 set
8 Plasma power DC 8kW
9 Q'ty 6 units (4 units at headquarters, 2 units at Factory 2)

* Move left and right
